Tumbler Dryer

Tumbler Dryer
Tumbler Dryer
Product Code : AITD 61
Brand Name : Aesar
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Product Type
  • Laundry Machinery
  • Material
  • INNER DRUM SS and OUTER BODY MS
  • Usage
  • For Cloth Drying
  • Control System
  • AUTOMATIC DIGITAL PLC SYSTEM
  • Installation Guideline
  • EASY TO USE
Product Description

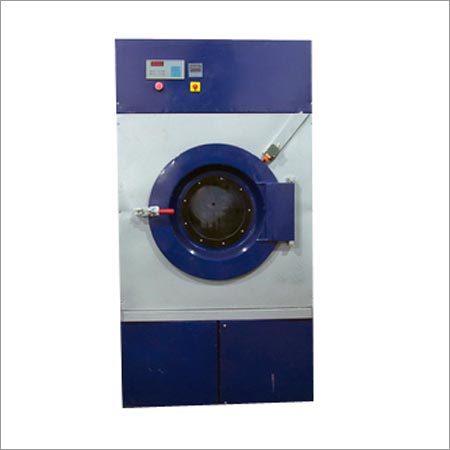

 Tumbler Dryer-Front Loading



We offer high quality Tumbler Dryer to our valued clients. This mixer is manufactured using high-grade basic material and advanced manufacturing technology in complete adherence with the defined parameters of the industry. We offer this in various technical specifications as per the specific requirements of clients.

Features:

  • Longer service life
  • Excellent performance
  • Low power consumption
  • Easy operation

BATCH CAPACITY: - 30 KG, 60 KG, 100 KG, 125 KG

OUTER BODY : - HEAVY STEEL SECTIONS HAVE BEEN USED FOR DURABILITY.

DRUM: - INNER DRUM BODY FULL STAINLESS STEEL.

ELECTRONIC CONTROL PANEL BORD : FULLY AUTOMATIC




  • The tumble driers use the 01 heat exchange to dry garments and other articles that have just been washed.

  • The complete stainless steel (AISI Grade 304) basket that holds the articles Is precision punched In a CNC machine and is supported by sell aligning ball bearing lower a noiseless operation. The sizes 01 the perorations 01 the inner basket are optimally designed so as to ensure the right amount of air flow. The inner basket has stainless steel paddles also manufactured in a CNC machine to ensure consistency in the lifting of garments.

  • The outer body is completely powder coated in our In house powder coating facility to ensure a long life.

  • An individual micro controls based control system come with this machine. Settings than are displayed and can be programmed include cycle times.

  • Digital temperature control And Tow Way Swatch.

  • Individual Micro Control Auto Timed, Auto- Reserve & Forward time.

  • The heat exchange can be powered with steam, & Electrical Heated.

  • A reversing inner basket to prevent garments from tangling and a large door opening for ease of loading and unloading articles come standard.

  • Emergency stop buttons and a safety limit switch is pre installed to ensure safety of the operator.

  • The lint filter is extremely large and very easy to clean (low The inner basket is doubly insulated with the finest quality mineral wool held in place by aluminium sheets on loaded spring hooked ties.



    Aesar Hydro Extractor Direct Drive
    Capacity
    (kgs)
    Basket Size
    mm/inch
    Drive
    Motor hp
    Blower
    Motor
    Steam Connection
    & Consumption
    Air Outlet
    (mm)
    Electric
    Heating (kw)
    Main Door
    Opening
    Dimensions
    ( W x D x H)
    Net Weight
    (kgs)
    15 760 x 600
    30 x 24
    0.5 0.5 15mm BSP 20 kg/Hr 250 x 250 mm 9 to 12 450mm 650 x 1150 x 1700 375
    30 915 x 915
    36 x 36
    1 1 15mm BSP 35kg/Hr 300 x 300 Mm 16 x 20 600 mm 1100 x 1350 x 1800 450
    60 1180 x 990
    46 x 49
    2 1.5 25mm BSP 50 kg/Hr 350 x 350 Mm 24 to 30 775mm 1350 x 1825 x 2300 670
    100 1680 x 1120
    66 X 44
    3 1.5+1.5 25mm BSP 90 kg/Hr 400 x 400 Mm N/A 850 mm 1900 x 2210 x 2700 900
    120 1830 x 1270
    72 x 50
    3 2+2 38mm BSP 120 kg/Hr 400 x 400 mm N/A 1050 2200 x 2600 x 3100 1100
